Overview

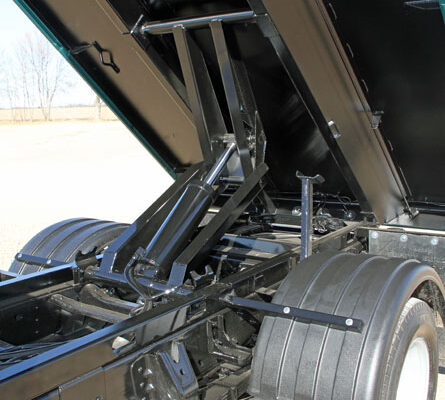

The proven Lo-Boy hoist is engineered for easy installation, ease of operation, safety and long service life. Its low profile adds no body height, keeping the load low. The Lo-Boy is designed with a far-forward lift point, providing easier load elevation and greater stability.
A power beyond port and reservoir mounted valve are additional features only found on Crysteel’s Lo-boy hoists. A 5-year warranty backs the durable Lo-Boy hoist.
With Subframe

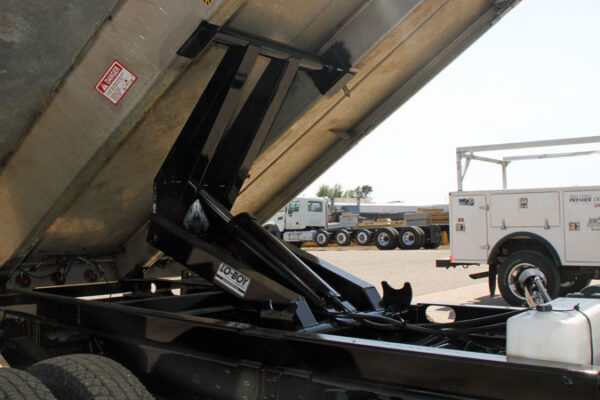

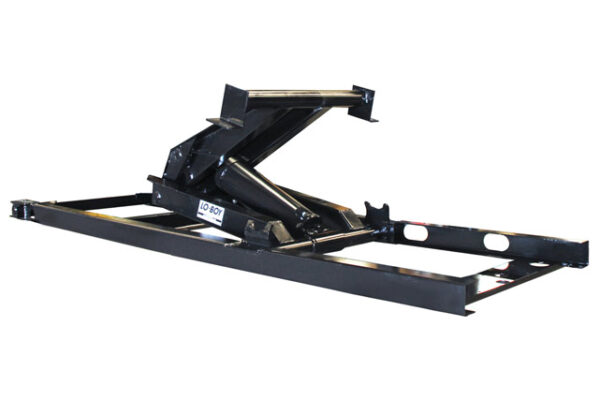

A full-length subframe is engineered for added strength and stability. The complete assembly is simple to install and includes a cut-out for the fuel filler neck and a body prop.
FEATURES WITHOUT SUBFRAME
- Seven models are available with 5-27 ton lifting capacity
- All feature premium cylinders made from high-strength honed steel tubing
- Chromed shafts
- Close-tolerance pistons
- High-pressure seals
- High-pressure hydraulics produce more power with less weight
FEATURES WITH SUBFRAME
- Four models are available for 8 to 14-foot bodies
- All feature premium cylinders made from high-strength honed steel tubing
- Chromed shafts
- Close-tolerance pistons
- High-pressure seals
- High-pressure hydraulics produce more power with less weight
Product Literature
Manuals
LoBoy Hoist, Model ST4000, effective 2014-05
LoBoy Hoist, Model E-15 (Ernie), effective 2014-05
Lo-Boy Hoist, effective 2014-05
Lo-Boy Hoist Subframe Installation
Email sales@crysteel.com if you are in need of an older version of your manual
Specifications
PRODUCT LITERATURE
Crysteel LoBoy with Subframe Hoist Literature
Manuals
LoBoy Hoist, Models LB 400, 500, 510, effective 2014-05
LoBoy Hoist, Model LB520, effective 2014-05
Email sales@crysteel.com if you are in need of an older version of your manual
